RCBO Residual Current Breaker 2P 20A 30mA Curve C AC

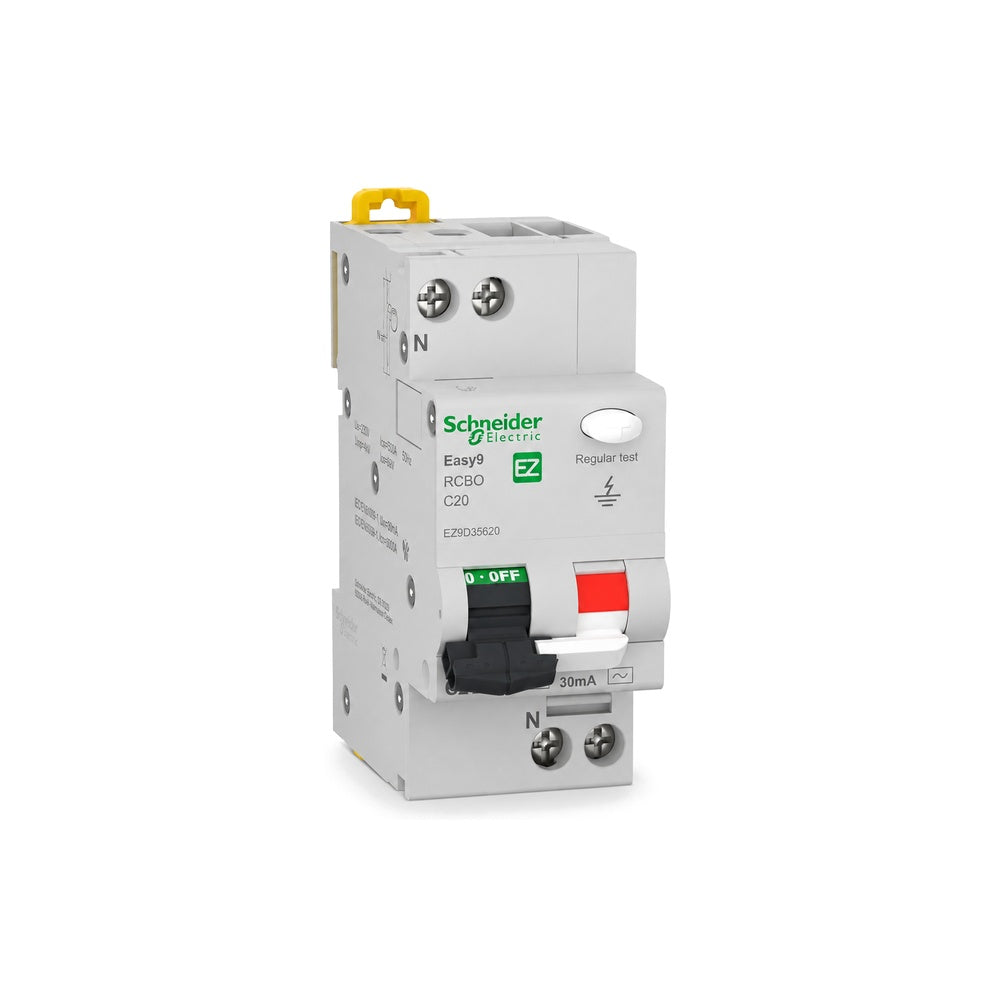

Schneider Electric Easy9 RCBO 2P 20A 30mA Curve C AC

The Schneider Electric Easy9 RCBO is a combined device that merges the functions of a circuit breaker and residual current protection in a single unit. It protects simultaneously against overload, short circuit, and earth leakage current.

This model has a rated current of 20A, tripping curve C, and 30mA sensitivity, making it suitable for protecting lighting and socket circuits in residential and commercial installations.

Type AC is designed to protect against sinusoidal AC residual currents and is widely used in standard electrical installations.

The two-pole design (2P / 1P+N) breaks both the phase and the neutral, while the 6kA breaking capacity provides reliable protection in case of short circuit.

The product is part of Schneider Electric's Easy9 range and saves panel space by combining two protective functions in a single device.

Key features

• Manufacturer: Schneider Electric
• Series: Easy9
• Device type: Combined circuit breaker with residual current protection (RCBO)
• Number of poles: 2P (1P+N)
• Rated current: 20A
• Curve: C
• Sensitivity: 30mA
• Breaking capacity: 6kA
• Protection type: AC
• Mounting: DIN rail
• Application: protection against overload, short circuit, and earth leakage current
